Beiter Compound Rest

Beiter Compound Rest
Click image above to enlarge.

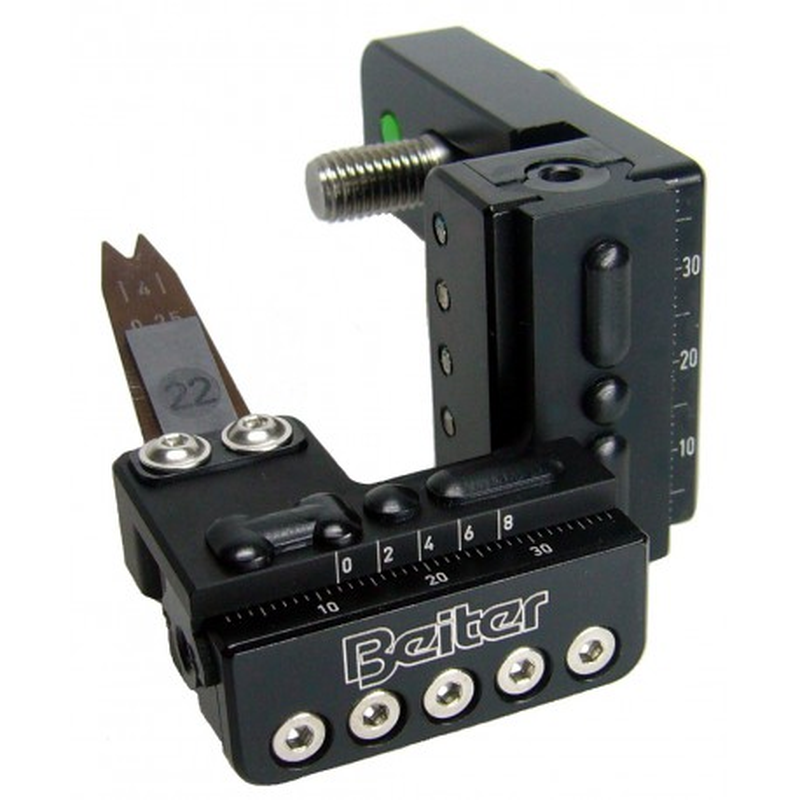

Beiter Compound Rest

The Beiter Compound Rest is an extremely precise compound rest with the innovation and craftsmanship we all expect from Beiter. Sturdy design with micrometer-style adjustment, allowing smooth and very exact alterations. Adjustable blade angle system and interchangeable guidance plates allow blade stiffness and position to be controlled to suit your bow/arrow combination, while the plates stop the blade from rebounding and interfering with arrow flight.

Included with the rest:

  • 1x Launcher Blade 5/0 .25mm
  • 1x Set of guidance plates
  • 1x Hex wrench 3mm
  • 1x Hex wrench 2mm
  • 1x Hex wrench 3/16"
  • 1x Hex tool 3mm

When looking at the Beiter Compound Rest you might expect it to be an extremely heavy sight due to it’s bulky size however due to some clever design work from Werner Beiter this is not the case. Werner Beiter used thermopolasts wherever possible to reduce weight whilst still allowing for as much stability as possible.

Werner Beiter developed a revolutionary horizontal and vertical adjustment, which allows adjustments precise as 0.2mm: meaning you could move the rest instead of the sight to move your group into the Centre.

  • The two guidance plates on the launcher minimise the oscillation when the arrow leaves the bow and also changes the stiffness of the launcher.
  • Horizontal and vertical movement without any fixation screw. The Rest can be adjusted without loosening or tightening any screws.
  • Highest precision, thanks to a revolutionary concept the Rest can be adjusted without tolerances and play, with a previously unmatched level of precision not known until today.
  • Reproducible settings: both the vertical and the horizontal millimetric scale have a Vernier scale (like a caliper). Thanks to that, the Rest can be adjusted with a precision of 0.2mm. The setting can be reproduced, causing the arrow rest to have Zero play.
  • The launcher can be set in 2 different angles - 30° or 35°- by changing two little blocks. So the angles can be re-set precisely.
  • Guidance Plates with bulge: Plates with different lengths can be installed on top and bottom of the launcher. These will change the stiffness of the launcher and avoid any oscillation after the shot, which most of the time is the reason of bad clearance. The bulge on the plates gives the launcher the chance to follow the horizontal path of the arrow leaving the bow.
  • Stainless Steel 5/16“-24" screw with flat head and large diameter. The Spacer made out of a special plastic allows to fix the screw better. A counter screw with an elastomere pad avoids any marking on the bow handle.
  • Different Launcher sizes and thicknesses will be available to fit various arrow diameters and weights.

Click for setup instructions

More Product Info
