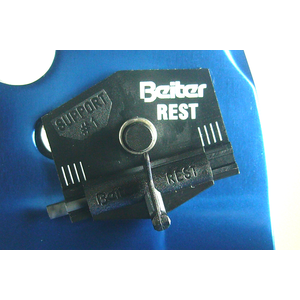

Beiter Recurve Rest

Click image above to enlarge.

Beiter Recurve Rest

An easily adjustable Recurve Rest from Beiter, which provides reliable arrow support for Archers of all abilities. The Beiter recurve rest is the primary choice of top archers because of its accurate and easily adjusted positioning system.

Click here for Beiter's PDF Explanation of the various sizes. If you are unsure about sizing please consult the below information, if still unsure please contact us via email or phone and we can assist you in choosing the right size rest. Click for setup instructions.

There are three types of Fingers:

15-12-0,65 for arrows with a diameter of 5.2mm with a tolerance of +/-1mm
16-17-0,65 for arrows with a diameter of 7.8mm with a tolerance of +/-1mm
17-23-0,77 for arrows with a diameter of 9.3mm with a tolerance of +/-1mm

Using the above information you can work out which size rest you need, first measure the diameter of your arrow shaft which will tell you which of the three fingers you require.

Once you know which finger you require consult the table, you have the choice of three support sizes support size #2 is 1mm thicker than #1 and #3 size support is 2mm thicker than size #1 - this allows you to adjust the alignment of the rest depending on the riser you are using. The size 'A' is the distance from your riser to the outer diameter of your arrow, hence the larger the support the further away from the riser your arrow will be.

Finger	Support #	"A"	Code
15-12-065	1	15	RE1512065
15-12-065	2	16	RE1612065
15-12-065	3	17	RE1712065
16-17-065	1	16	RE1617065
16-17-065	2	17	RE1717065
16-17-065	3	18	RE1817065
17-23-077	1	17	RE1723077
17-23-077	2	18	RE1823077
17-23-077	3	19	RE1923077
