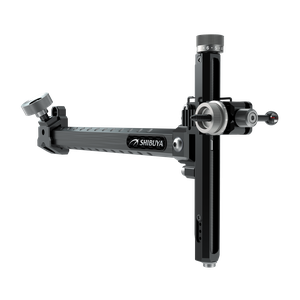

Shibuya Ultima III RC Recurve Sight
The Shibuya Ultima III RC Recurve Sight sets a new standard for competitive archery, combining the best features of the Ultima RCII and Ultima RC PRO into a lightweight, precise, and highly adjustable sight. Designed for elite performance at an affordable price, this sight delivers exceptional stability, accuracy, and ease of use.
Key Features:
- Optimized Weight Distribution: Weighing just 211g (7.4oz), the sight is designed with a target-side weight reduction, making it feel even lighter when mounted.
- Tool-Free Sight Pin Locker: The redesigned thumb screw adjustment eliminates the need for hex wrenches, making quick and easy sight changes effortless.
- Interchangeable Sight Scale Plates: Metal sight scale plates on both sides of the elevation bar include a standard scale and a blank plate for custom printed tapes.
- Ambidextrous Mount: A newly designed lightweight mount extends the sight further out, reducing rear overhang even on the slimmest risers.
- Pressure-Insert Drive Shaft Dampening System: Improves vibration reduction for the quietest, most stable sight Shibuya has ever built.
- X-Lock System (US Pat. No. 7,287,335): Provides a zero-tolerance fit between the windage unit and sight frame, ensuring smooth, precise movement with re-adjustable guide spacers.
- Maximum Grip Dial Finish: Upgraded dials and mounting knobs offer a secure grip, making adjustments smoother and more reliable.
- Laser-Engraved Windage Scale: Provides fine-tuned accuracy, making micro-adjustments easier and more precise.
Ultima III diagram and part list

Carbon Model |
Mass Weight |
211g |
Aperture Distance(APD) |
MAX 255mm
MIN 90mm |
Elevation |
Adjustment Model |
Screw Drive with No-Lock Quick Adjust Function |
Length |
132mm (approx. 5.2") |
Adjustable Range |
107mm |
Adjustment Increments |
1/24" per revolution (approx. 1mm) |
1/480" per click (approx. 0.05mm) |
Tilt Adjustment |
adjustable |
Windage |
Adjustable Range |
5.4mm |
Adjustment Increments |
1/32" per revolution (approx. 0.8mm) |
1/640" per click (approx. 0.04mm) |
Compatible Apertures |
No.8-32 threaded sight pins |
Extension |
Length |
233mm (approx. 9") |
Adjustable Range |
6.5"
(approx. 165mm) |
Adjustment Increments |
1/2"
(approx. 12.7mm) |
Material |
Elevation |
6000 series aluminum alloy |
Windage Unit |
6000 series aluminum alloy |
Extension |
Carbon Fiber |
Colors |
Black, Silver, Blue, Red |
RH/LH |
available |
Release Date |
2022 |
Included Accessories |
Soft Sight Case |
No.10-24 mount screws |
Hex Wrenches 1.5mm/2.5mm/3mm |
Blank sight tape |
Instructions Sheet |
User registration card |
