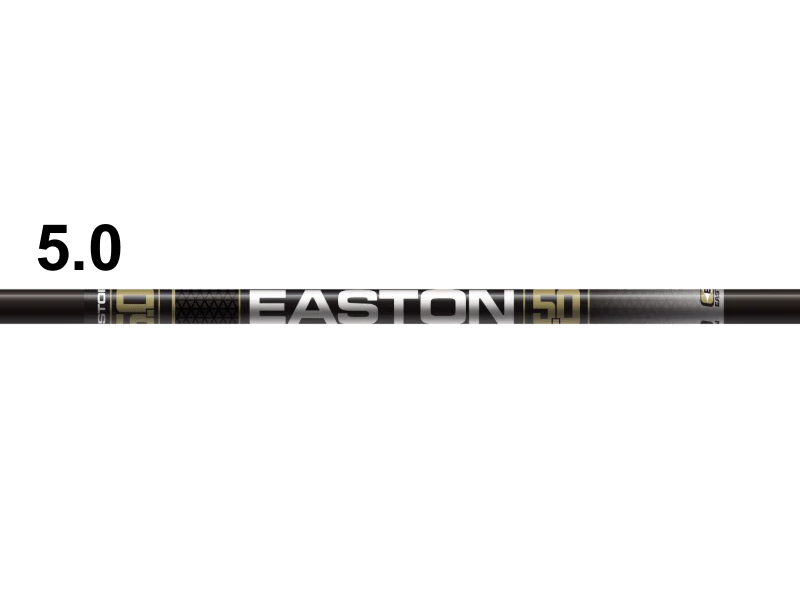

Easton 5.0 Shaft -Single

Click image above to enlarge.

Easton 5.0 Shaft -Single

The Easton 5.0 is a lightweight, small-diameter hunting arrow designed for bowhunters looking for speed, accuracy, and versatile setup options. Built on Easton's 5mm Acu-Carbon platform, the micro-diameter design reduces wind resistance and friction for improved downrange performance and penetration.

Made in the USA using high-modulus carbon fibre and Easton's seamless Acu-Carbon construction, the 5.0 delivers consistent spine and weight from arrow to arrow. Its lightweight design makes it suitable for a wide range of setups, from fast, lightweight builds to higher-FOC configurations.

Key Features

Lightweight 5mm micro-diameter carbon construction for speed and reduced wind drift
Acu-Carbon construction for consistent weight and spine
New 5MM Microlite nock system with improved string fit and tunability
Compatible with 8-32 HIT inserts or 50-grain one-piece steel half-outs
Available in six spine sizes: 200, 250, 300, 340, 400, and 500
Available in Standard and Match Grade versions
Made in the USA

Specifications

Straightness: Standard
Material: High-modulus carbon fibre
Diameter: 5mm

SIZE	SHAFT WEIGHT	SPINE @ 28″ SPAN	STOCK LENGTH	FIELD POINT	MATCH GRADE HIT COLLAR & HALFOUT	O.D.	5MM 8-32 1-PIECE HALFOUT
	GPI	Deflection in Inches	Inches	O.D. Inch	Size	Inches	Size
200*	10.6	0.2	33.5	9/32	#4	0.273	#2
250*	9.5	0.25	33	9/32	#3	0.27	#2
300*	8.4	0.3	32.5	17/64	#2	0.264	#2
340	7.5	0.34	32	17/64	#1	0.258	#1
400	6.8	0.4	31.5	17/64	#0.5	0.253	#1
500	6.2	0.5	31	17/64	#0.5	0.249	#1

AMO Arrow Length

When entering your required arrow/shaft length please enter the AMO length - this is the length of the arrow from the inside of the nock to the end of the shaft (Excluding the point) in inches. Please refer to the below diagram as an example.

If you already have a set of arrows/shafts you can send in one and we will use your sample arrow to set up our saw to ensure the length of the arrows match perfectly.
